3/5軸伺服驅動CNC機器人（機械手）-SH系列SH800DM
購置世界最先進CNC與FMS的精密電腦加工設備、電子加工設備、循環組立系統及自動化的倉儲設備，可24小時自動化生產，零件自制率達到90%以上.
- 產品特點
- 詳細規格
- 產品尺寸

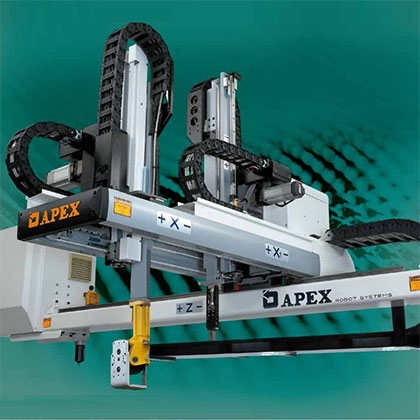

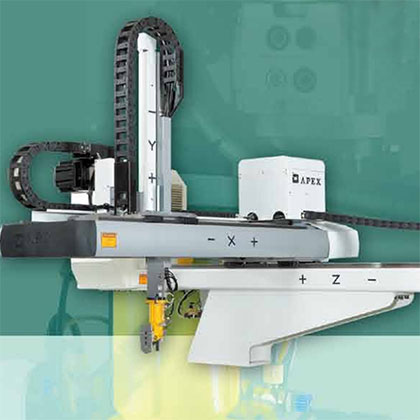

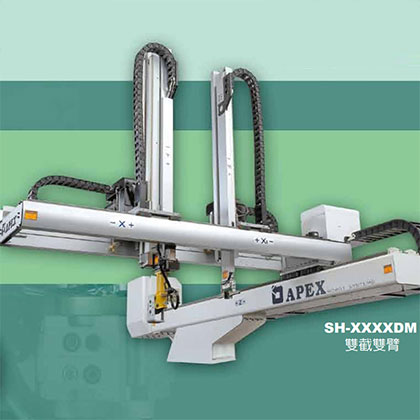

6 AXIS SERVOMOTOR DRIVEN CNC ROBOTS WITH TELESCOPIC ARM
- Rigid box frame design on the cross axis. Very sturdy under high speeds
operation.- Strong and lightweight Aluminum alloy extrusion material that can absorb
shock wave further more to reduce vibration.- 6 axis synchronized movement. Free tracking control with pulse generator,
easy to program.- Sub-arm model equipped with electrical motor for easy strokes adjustment.
No need to climb up.
Application 12 spare output and 14 spare input terminal for coordinate with other auxiliary equipments.
1. Parts removal : a) Reduce the difficulty and lower the cost to built End Of Arm Tooling.
b) Able to reach unconventional paths such as curves, hooks, undercut and exceptional routes.2. Stack and array: Can handle up to 9 stacks and array areas. Otherwise can placing 100 points on the same working surface.
3. Insert and grid: Can handle 9 different insertion materials into the mold. It can be feed from single point or grid pallet or multi-station.
4. Coordinate with other second operation machines Conveyor, palletizing, sprue cutting, electronic weight scale, parts feeder, self-storage system and many others.
5. Multiple inspection functions a) Reject program: When connected to Injection Molding Machine, can place reject part in pointed area.
b) Inspection program: By setting the quality counter placing the part for Q/C purpose. Example once every 100 cycles.
c) Weight program: Connected to electronic weight scale, it can separate the defect part.

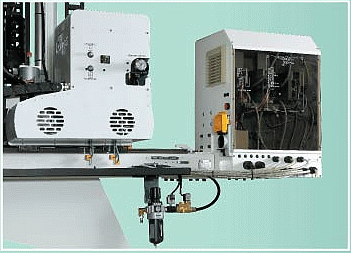

d) Cycle counter: By setting the total molded cycles. Inspection or defect cycle will not taken into counters.CNC control box. 6 drivers for 6 axis.
6.Touch Screen Pendent
- 8" Touch screen. AMD 500MHz CPU with DDR 512M Memories. Compatible with Windows CE system and 512M CF memory card.
- Easy to operate with graphic symbol. All the information is stored in the CF card. Update system, upload or download program can be done directly on hand-pendent.
- Multiple languages can be select. All the repair and maintenance can be done on the hand-pendent. Faster and easier than ever.
- Gigantic memory capacity. It can store over 10,000 sets of programs; each program can edit 500 steps. Also can use USB port to upload or download to PC.
|

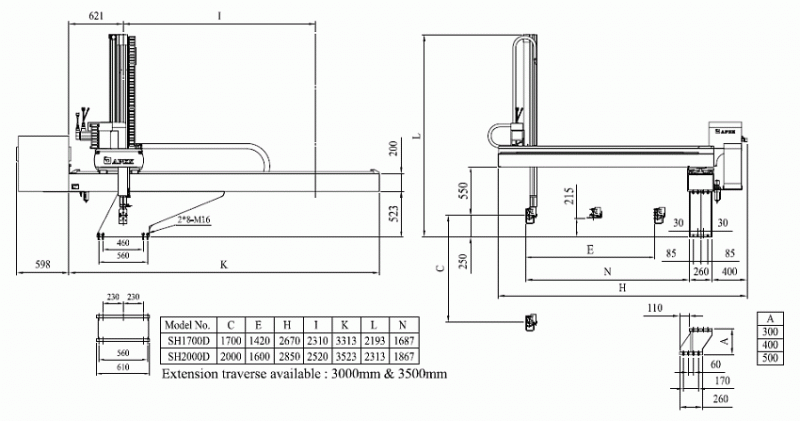

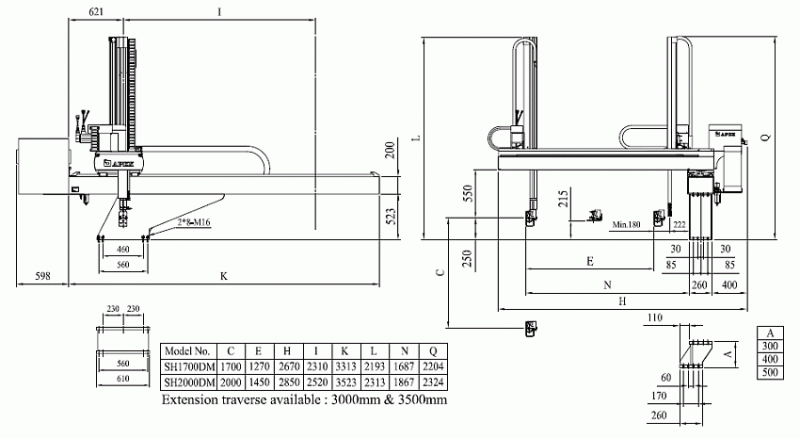

==Mechanical Drawings== |

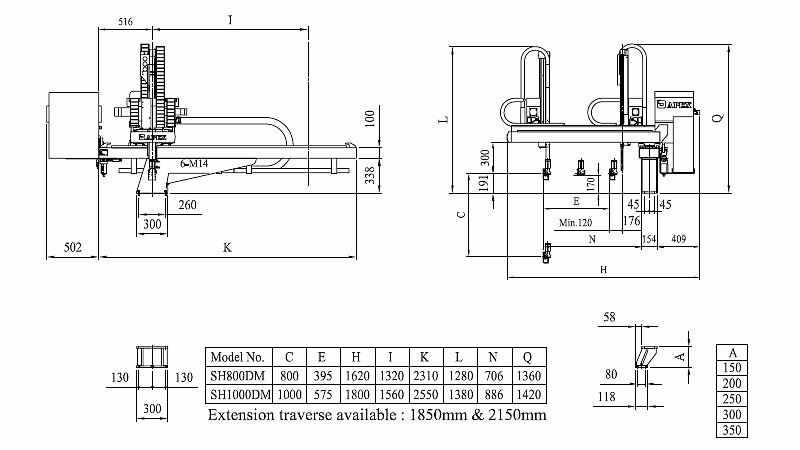

SH800DM ~ SH1000DM
|
|

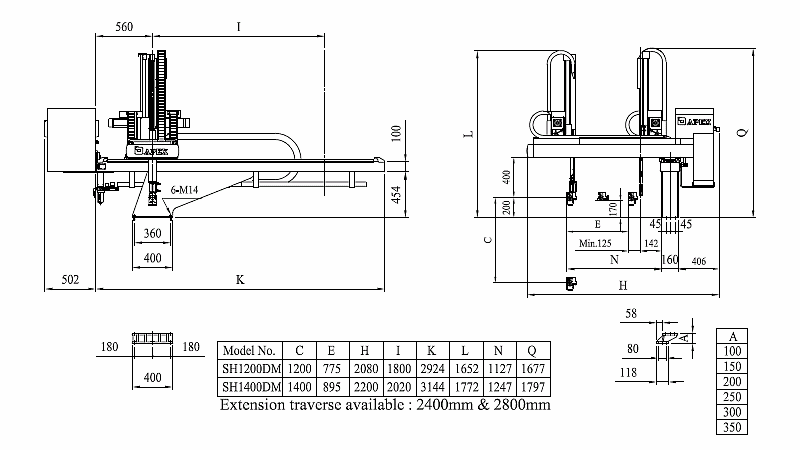

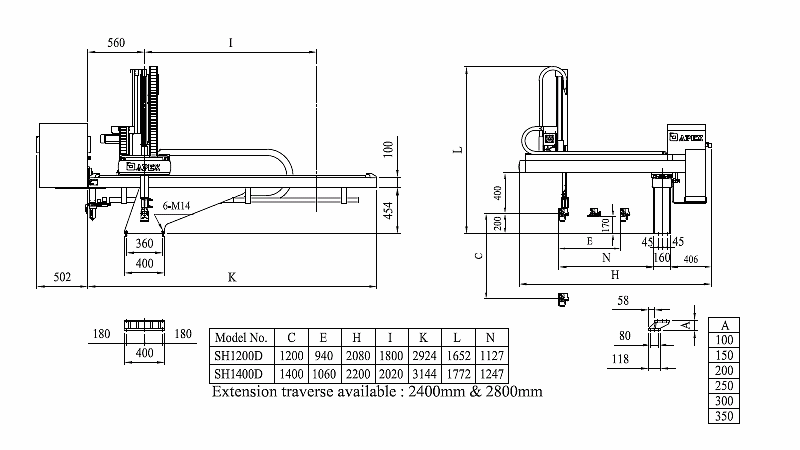

SH1200D ~ SH1400D
|
|
|
|
|
|
|
|
