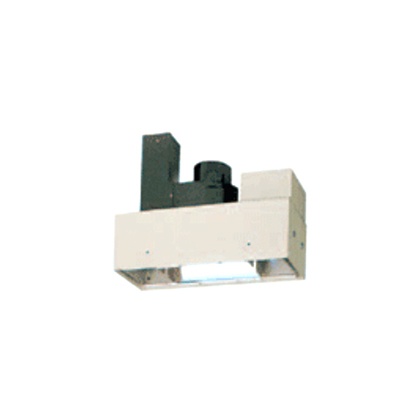

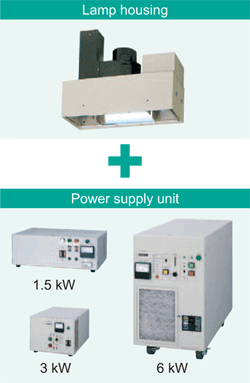

ANUP8000 Aicure Straight Lamp Type
DI-cool optical mirror prevents overheating;Built-in Continuous Adjustment Function ( 3 kW / 6 kW );Electronic Ballast Reduces Size and Uses 40% Less Energy ( 3 kW / 6 kW )
------ 相關產品 ------
客服中心
售前咨詢（天津）
售前咨詢（北京）
售前咨詢（濟南）
項目咨詢
售后與維修咨詢
- 基本信息
- 產品種類
- 詳細規格
- 產品尺寸
- 產品用途
- 可選件
|
Features
1.DI-cool optical mirror prevents overheating
|
|
2.Built-in Continuous Adjustment Function ( 3 kW / 6 kW )
Adjust UV intensity in a range of 50% to 100%, in increments of 5%, depending on the item being manufactured, and resin being used.
3.Electronic Ballast Reduces Size and Uses 40% Less Energy ( 3 kW / 6 kW )
Much more compact than conventional (6 kW) products, volume ratio is roughly two thirds, and weight ratio is roughly one third. Energy consumption was also greatly reduced: power capacity was cut by roughly 40%.
Specifications

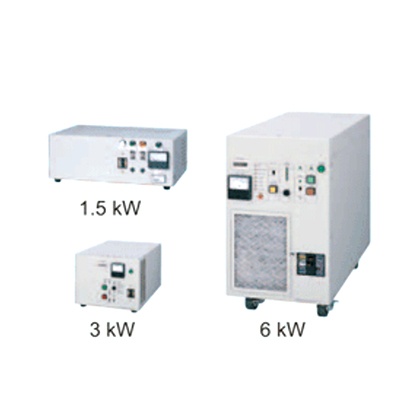

Power supply unit specifications
| Lamp output | 1.5 kW | 3 kW | 6 kW | |
|---|---|---|---|---|
| Ballast type | Transformer | Electronic ballast | ||
| Input power supply | Single-phase | Single-phase | Three-phase | |
|
200 V AC 50/60 Hz (Toggle switch selectable) 15 A |
200/220/240 V AC 50/60 Hz 30 A | 200 V AC 50/60 Hz 30 A | ||
| Lamp | Metal halide lamp | 1.5 kW | 3 kW | 6 kW |
| High-pressure mercury lamp | ||||
|
External output signals (Monitor function) |
- | Detection of lamp-on, lamp stabilized, errors, and cooling fan operation (the 6 kW type only) | ||
|
External input signals (Remote control function) |
- | Lamp-ON/OFF, lamp output switching, interlock, and shutteropen/close (available in the type with the shutter function) | ||
| Error monitor displays |
Lamp housing temperature errors, lamp cooling fan errors |
Lamp errors, lamp error output, power supply unit errors, lamp housing temperature errors, lamp cooling fan errors, and interlock |
||
| Lamp intensity control | With a switch for dimming the intensity to 75% | Adjustable range: 100 to 50% | ||
|
Auto control function (UV intensity retention function) |
- | Equipped | Equipped, adjustable range : 100 to 65% | |
|
Power supply unit size (mm in) L x W x H |
450 x 310 x 175 17.72 x 12.20 x 6.89 |
340 x 450 x 247 13.39 x 17.72 x 9.72 |
270 x 685 x 475 10.63 x 26.97 x 18.70 |
|
| Weight | 32 kg approx. | 28 kg approx. | 45 kg approx. | |
